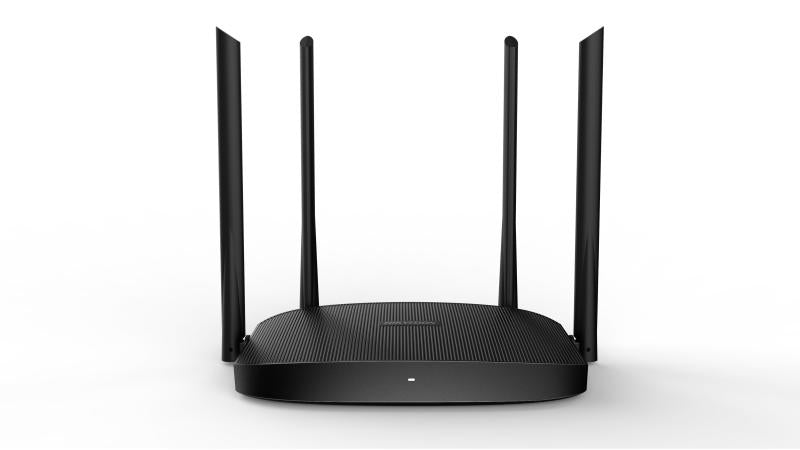

Hikvision 4 antena DS-3WR12C Router

AC1200 Wireless Router

• Four 5-dBi amplified antennas
• Beamforming optimizes signal
• Dual band – Smart signal switching
• Broadband account synchronization
• • Wireless Parameter
  • Data Rate

    ≤ 1167 Mbps

    2.4 GHz: 300 Mbps

    5 GHz: 867 Mbps

  • Wireless StandardIEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
  • Transmitting Power18 dBm
  • Wireless Performance

    4 × 4 MU-MIMO supported

    Beamforming supported

  • Receiving Sensitivity

    58 ± 2 dB@AC80 -MCS9

    84 ± 2 dB@AC80 -MCS0

  • Antenna4 high gain antennas
  • Hardware Parameter
  • Network Interface4 × RJ45, 10/100 Mbps auto-negotiation
  • LED IndicatorLED indicator
  • ResetReset button
  • Power Supply Method9 VDC, 1 A power adapter power supply
  • Power Specifications9 VDC, 1 A
  • Software Function
  • Application Function

    Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported

    DHCP Server supported

    Guest Network Configuration supported

    Signal Adjustment supported

    WiFi Schedule supported

  • Security ModeWPA-PSK, WPA2-PSK, WPA and WPA2 supported
  • Security MechanismHide SSID
  • Management MethodWeb, APP
  • UpgradeWeb, App Update and Upgrade
  • System LogSystem log
  • General
  • Product Dimension (W × H × D)248.40 mm × 154.80 mm × 213.34 mm (9.78"× 6.09"× 8.40")
  • Package Dimension (W × H × D)306 mm × 290 mm × 59 mm (12.05"× 11.42"× 2.32")
  • Net Weight0.222 kg (0.489 lb)
  • Packing ListWireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
  • Packing MethodSingle pack
  • Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
  • Working Humidity10% to 90% RH non-condensing
  • Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Storage Humidity5% to 90% RH non-condensing
  • Installation ModeDesktop installation
  • Max. Power Consumption≤ 9 W
